| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1812BT | Ø1.8x1200mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-D1816BT | Ø1.8x1600mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
| AF-D2416BT | Ø2.4x1600mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2418BT | Ø2.4x1800mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2421BT | Ø2.4x2100mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D2423BT | Ø2.4x2300mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D3023BT | Ø3.0x2300mm | ≥Ø3.2mm | 8.5mm | Colonoscopy |

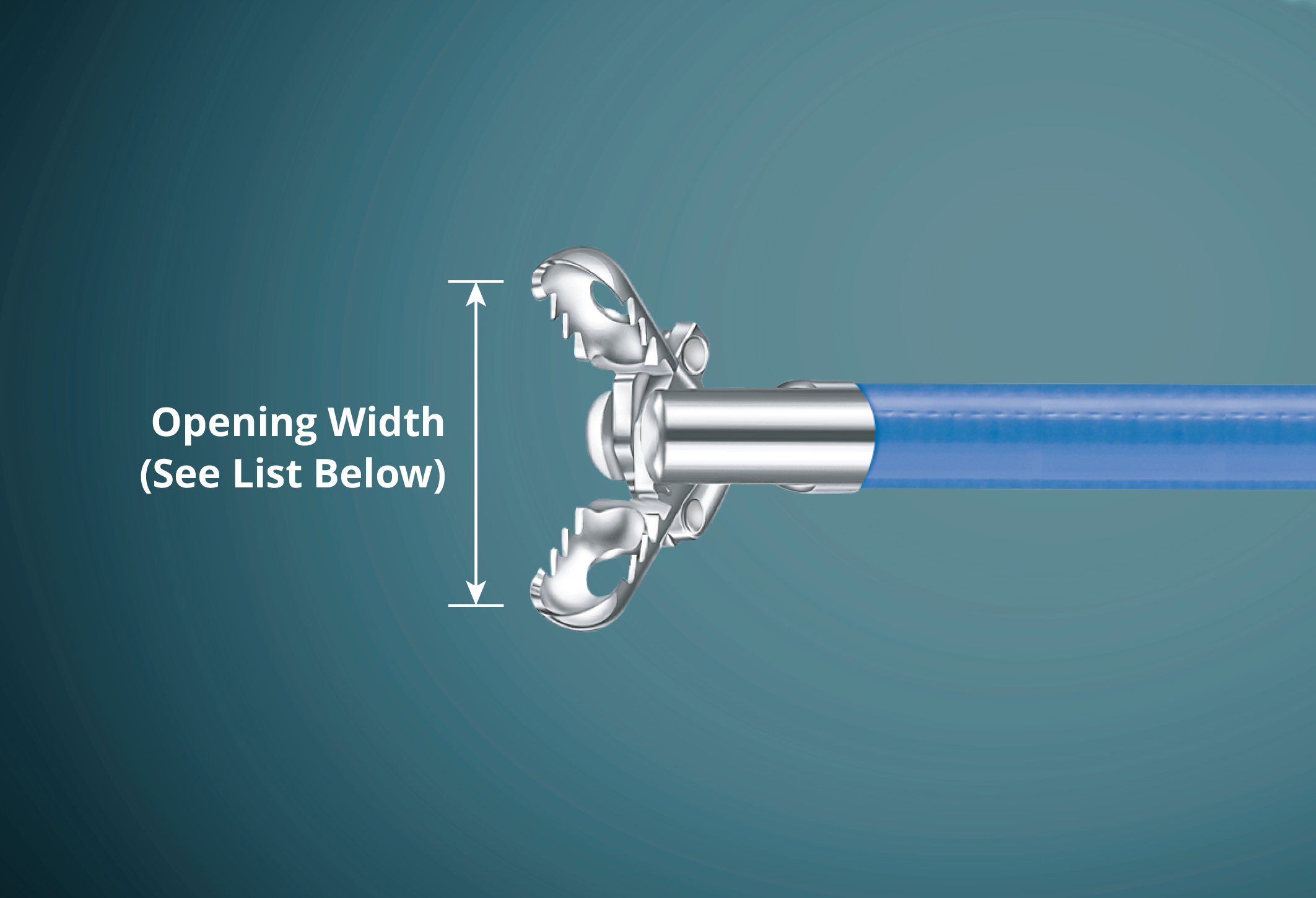

Oval and fenestrated cups for deeper biopsy.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1812BTC | Ø1.8x1200mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-D1816BTC | Ø1.8x1600mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
| AF-D2416BTC | Ø2.4x1600mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2418BTC | Ø2.4x1800mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2421BTC | Ø2.4x2100mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D2423BTC | Ø2.4x2300mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D3023BTC | Ø3.0x2300mm | ≥Ø3.2mm | 8.5mm | Colonoscopy |

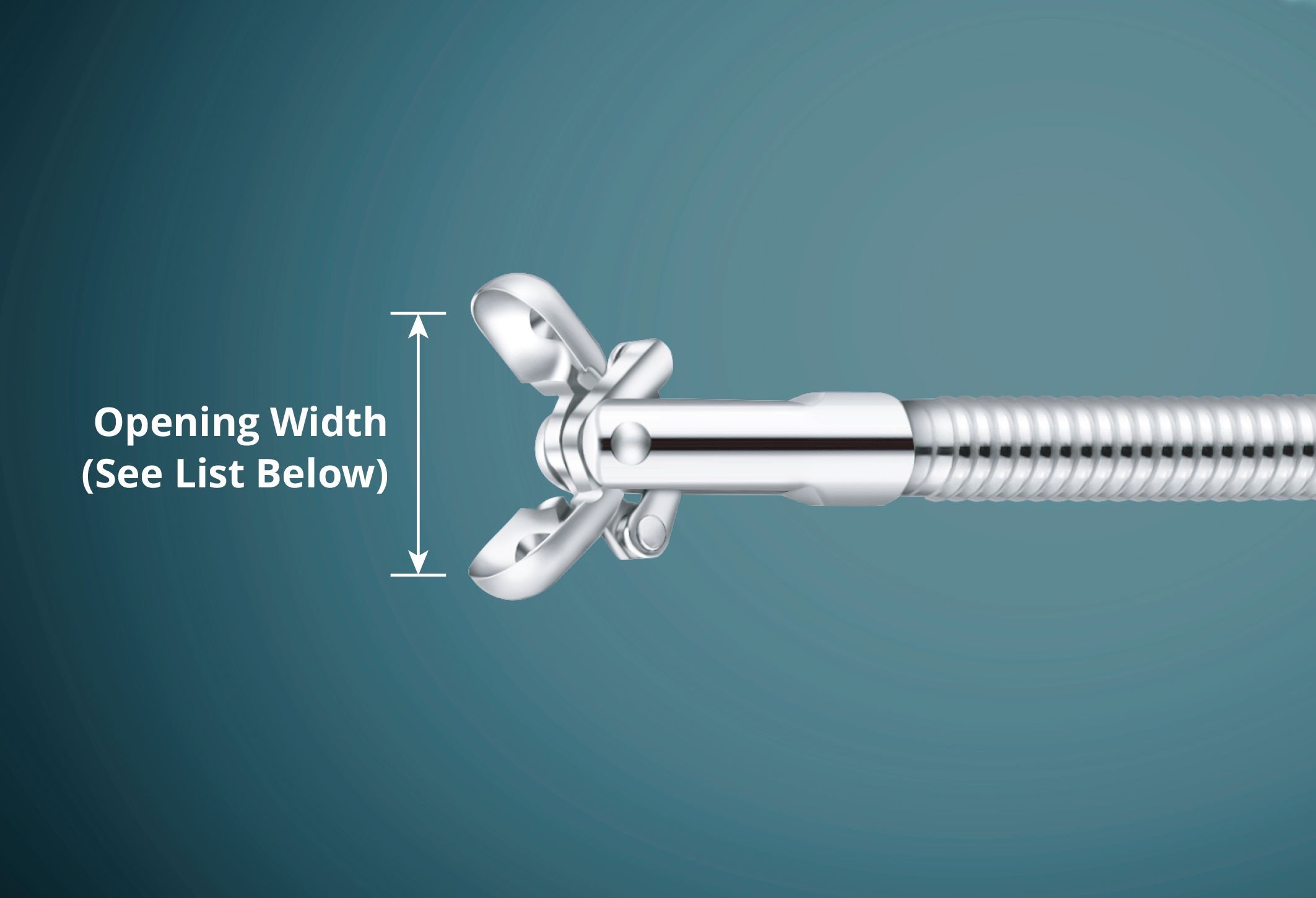

Oval and fenestrated cups for deeper biopsy.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1812BU | Ø1.8x1200mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-D1816BU | Ø1.8x1600mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
| AF-D2416BU | Ø2.4x1600mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2418BU | Ø2.4x1800mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2421BU | Ø2.4x2100mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D2423BU | Ø2.4x2300mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D2823BU | Ø2.8x2300mm | ≥Ø3.0mm | 8.5mm | Colonoscopy |
Serrated, alligator cups for deep biopsy of hard and difficult-to-access tissue.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1812BUC | Ø1.8x1200mm | ≥Ø2.0mm | 5.5mm | Bronchoscopy |
| AF-D1816BUC | Ø1.8x1600mm | ≥Ø2.0mm | 5.5mm | Gastroscopy |
| AF-D2416BUC | Ø2.4x1600mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2418BUC | Ø2.4x1800mm | ≥Ø2.8mm | 6.5mm | Gastroscopy |
| AF-D2421BUC | Ø2.4x2100mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D2423BUC | Ø2.4x2300mm | ≥Ø2.8mm | 6.5mm | Colonoscopy |
| AF-D2823BUC | Ø2.8x2300mm | ≥Ø3.0mm | 8.5mm | Colonoscopy |
Serrated, alligator cups for deep biopsy of hard and difficult-to-access tissue.
