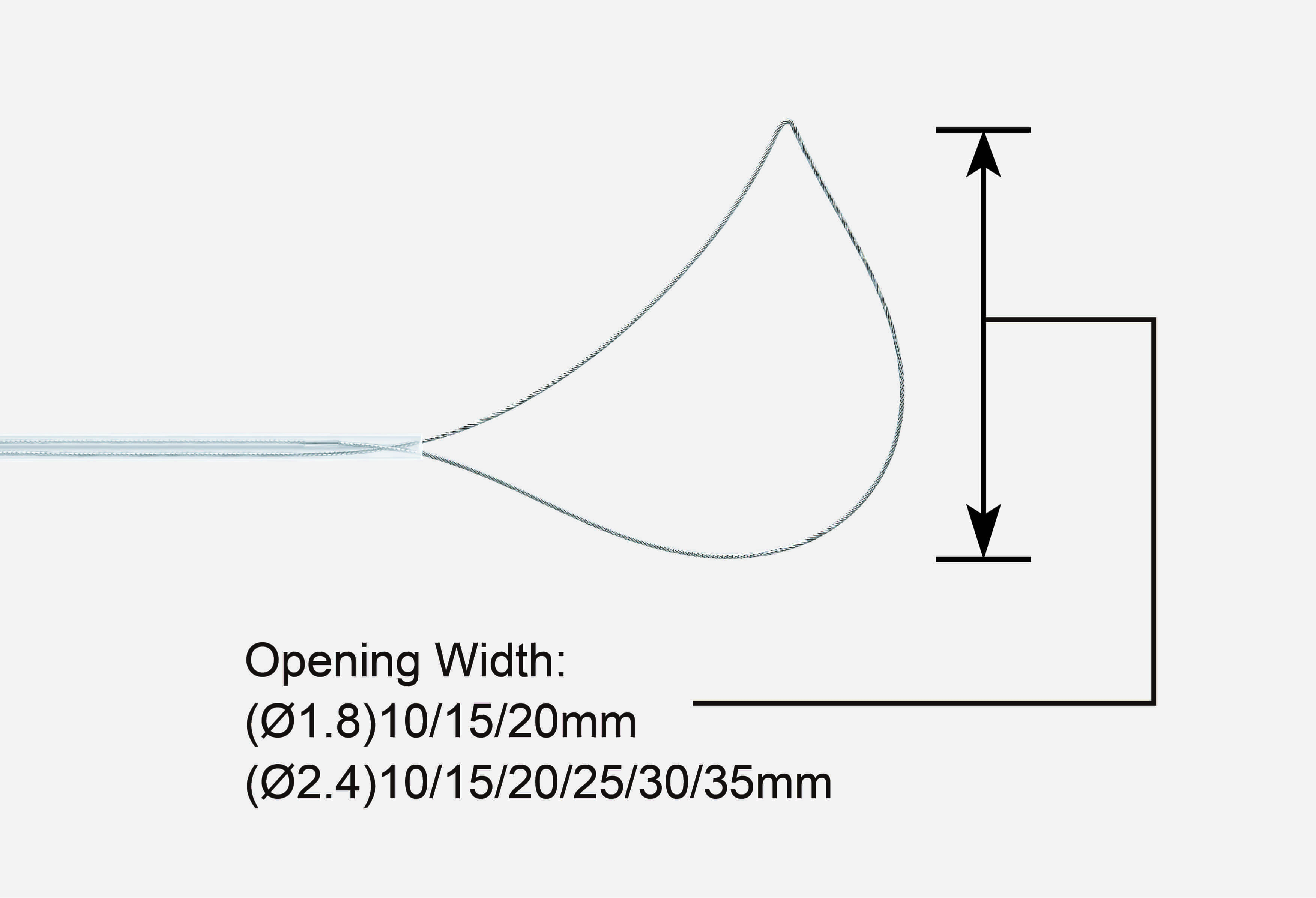

| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810DB | Ø1.8x1000mm | ≥2.0mm | 10/15/20mm | Bronchoscopy |
| AF-D1812DB | Ø1.8x1200mm | ≥2.0mm | 10/15/20mm | Bronchoscopy |
| AF-D1815DB | Ø1.8x1500mm | ≥2.0mm | 10/15/20mm | Gastroscopy |
| AF-D1816DB | Ø1.8x1600mm | ≥2.0mm | 10/15/20mm | Gastroscopy |
| AF-D1825DB | Ø1.8x2500mm | ≥2.0mm | 10/15/20mm | Enteroscopy |
| AF-D2416DB | Ø2.4x1600mm | ≥2.8mm | 10/15/20/25/30/35mm | Gastroscopy |
| AF-D2418DB | Ø2.4x1800mm | ≥2.8mm | 10/15/20/25/30/35mm | Gastroscopy |
| AF-D2421DB | Ø2.4x2100mm | ≥2.8mm | 10/15/20/25/30/35mm | Colonoscopy |
| AF-D2423DB | Ø2.4x2300mm | ≥2.8mm | 10/15/20/25/30/35mm | Colonoscopy |
Cut polyp with high-frequency current.Special alloy strands easy control of cutting and solidification.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810DBR | Ø1.8x1000mm | ≥2.0mm | 10/15/20mm | Bronchoscopy |
| AF-D1812DBR | Ø1.8x1200mm | ≥2.0mm | 10/15/20mm | Bronchoscopy |
| AF-D1815DBR | Ø1.8x1500mm | ≥2.0mm | 10/15/20mm | Gastroscopy |
| AF-D1816DBR | Ø1.8x1600mm | ≥2.0mm | 10/15/20mm | Gastroscopy |
| AF-D1825DBR | Ø1.8x2500mm | ≥2.0mm | 10/15/20mm | Enteroscopy |
| AF-D2416DBR | Ø2.4x1600mm | ≥2.8mm | 10/15/20/25/30/35mm | Gastroscopy |
| AF-D2418DBR | Ø2.4x1800mm | ≥2.8mm | 10/15/20/25/30/35mm | Gastroscopy |
| AF-D2421DBR | Ø2.4x2100mm | ≥2.8mm | 10/15/20/25/30/35mm | Colonoscopy |
| AF-D2423DBR | Ø2.4x2300mm | ≥2.8mm | 10/15/20/25/30/35mm | Colonoscopy |
Cut polyp with high-frequency current.Special alloy strands easy control of cutting and solidification.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810DC-1(A) | Ø1.8x1000mm | ≥2.0mm | 10/15mm | Bronchoscopy |
| AF-D1812DC-1(A) | Ø1.8x1200mm | ≥2.0mm | 10/15mm | Bronchoscopy |
| AF-D1815DC-1(A) | Ø1.8x1500mm | ≥2.0mm | 10/15mm | Gastroscopy |
| AF-D1816DC-1(A) | Ø1.8x1600mm | ≥2.0mm | 10/15mm | Gastroscopy |
| AF-D1825DC-1(A) | Ø1.8x2500mm | ≥2.0mm | 10/15mm | Enteroscopy |
| AF-D2416DC-1(A) | Ø2.4x1600mm | ≥2.8mm | 10/15mm | Gastroscopy |
| AF-D2418DC-1(A) | Ø2.4x1800mm | ≥2.8mm | 10/15mm | Gastroscopy |
| AF-D2421DC-1(A) | Ø2.4x2100mm | ≥2.8mm | 10/15mm | Colonoscopy |
| AF-D2423DC-1(A) | Ø2.4x2300mm | ≥2.8mm | 10/15mm | Colonoscopy |
Cut polyp with high-frequency current.Special alloy strands easy control of cutting and solidification.
.jpg)
| Item No. | Tube Diameter & Working Length | Working Channel Diameter | Opening Width | Scope Of Use |
| AF-D1810DC-1(B) | Ø1.8x1000mm | ≥2.0mm | 10/15mm | Bronchoscopy |
| AF-D1812DC-1(B) | Ø1.8x1200mm | ≥2.0mm | 10/15mm | Bronchoscopy |
| AF-D1815DC-1(B) | Ø1.8x1500mm | ≥2.0mm | 10/15mm | Gastroscopy |
| AF-D1816DC-1(B) | Ø1.8x1600mm | ≥2.0mm | 10/15mm | Gastroscopy |
| AF-D1825DC-1(B) | Ø1.8x2500mm | ≥2.0mm | 10/15mm | Enteroscopy |
| AF-D2416DC-1(B) | Ø2.4x1600mm | ≥2.8mm | 10/15mm | Gastroscopy |
| AF-D2418DC-1(B) | Ø2.4x1800mm | ≥2.8mm | 10/15mm | Gastroscopy |
| AF-D2421DC-1(B) | Ø2.4x2100mm | ≥2.8mm | 10/15mm | Colonoscopy |
| AF-D2423DC-1(B) | Ø2.4x2300mm | ≥2.8mm | 10/15mm | Colonoscopy |
Cut polyp with high-frequency current.Special alloy strands easy control of cutting and solidification.
