Disposable Grasping Forceps ( 2-Prong Type )

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Scope Of Use
AF-D2416GM102	Ø2.4x1600mm	≥Ø2.8mm	Gastroscopy
AF-D2417GM102	Ø2.4x1700mm	≥Ø2.8mm	Gastroscopy
AF-D2421GM102	Ø2.4x2100mm	≥Ø2.8mm	Colonoscopy
AF-D2423GM102	Ø2.4x2300mm	≥Ø2.8mm	Colonoscopy

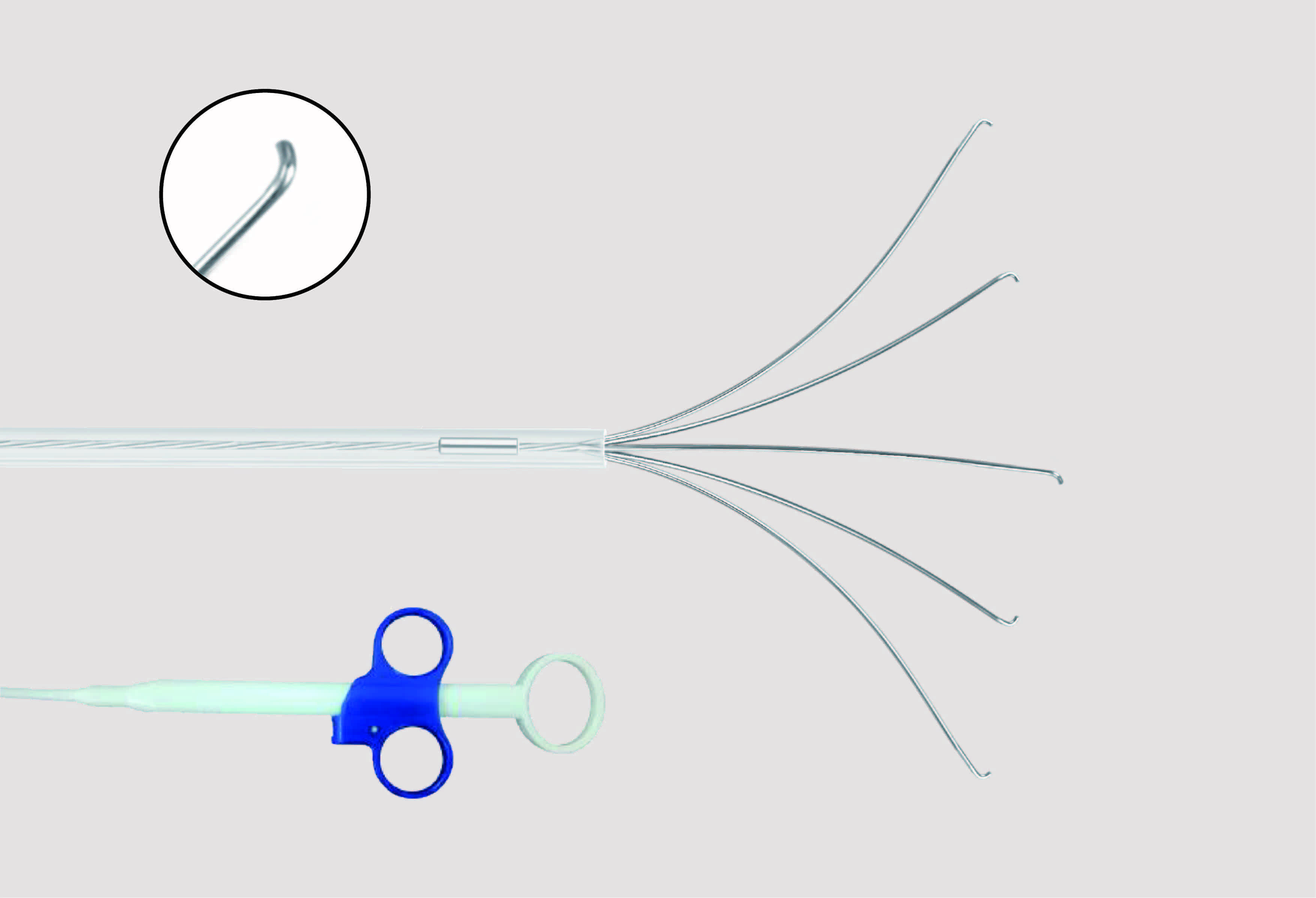

Disposable Grasping Forceps ( Basket without Tip Type, Nitinol )

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Opening Width	Scope Of Use
AF-D1007GL1	Ø1.0x700mm	≥Ø1.2mm	10/15mm	Urology
AF-D1010GL1	Ø1.0x1000mm	≥Ø1.2mm	10/15mm	Urology
AF-D1012GL1	Ø1.0x1200mm	≥Ø1.2mm	10/15mm	Urology
AF-D1807GL1	Ø1.8x700mm	≥Ø2.0mm	10/15/20mm	Choledochscopy
AF-D1810GL1	Ø1.8x1000mm	≥Ø2.0mm	10/15/20mm	Bronchoscopy
AF-D1816GL1	Ø1.8x1600mm	≥Ø2.0mm	10/15/20mm	Gastroscopy
AF-D1825GL1	Ø1.8x2500mm	≥Ø2.0mm	10/15/20mm	Enteroscopy
AF-D2415GL1	Ø2.4x1500mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-D2417GL1	Ø2.4x1700mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-D2421GL1	Ø2.4x2100mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy
AF-D2423GL1	Ø2.4x2300mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy

For retrieval of round and slippery objects.

Disposable Grasping Forceps ( Spirality Basket Type, Nitinol )

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Opening Width	Scope Of Use
AF-D1007GL2	Ø1.0x700mm	≥Ø1.2mm	10/15mm	Urology
AF-D1010GL2	Ø1.0x1000mm	≥Ø1.2mm	10/15mm	Urology
AF-D1012GL2	Ø1.0x1200mm	≥Ø1.2mm	10/15mm	Urology
AF-D1807GL2	Ø1.8x700mm	≥Ø2.0mm	10/15/20mm	Choledochscopy
AF-D1810GL2	Ø1.8x1000mm	≥Ø2.0mm	10/15/20mm	Bronchoscopy
AF-D1816GL2	Ø1.8x1600mm	≥Ø2.0mm	10/15/20mm	Gastroscopy
AF-D1825GL2	Ø1.8x2500mm	≥Ø2.0mm	10/15/20mm	Enteroscopy
AF-D2415GL2	Ø2.4x1500mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-D2417GL2	Ø2.4x1700mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-D2421GL2	Ø2.4x2100mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy
AF-D2423GL2	Ø2.4x2300mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy

For retrieval of round and slippery objects.

Disposable Grasping Forceps ( Spirality Basket Type, Nitinol )

Item No.	Tube Diameter & Working Length	Working Channel Diameter	Opening Width	Scope Of Use
AF-D1007GL2	Ø1.0x700mm	≥Ø1.2mm	10/15mm	Urology
AF-D1010GL2	Ø1.0x1000mm	≥Ø1.2mm	10/15mm	Urology
AF-D1012GL2	Ø1.0x1200mm	≥Ø1.2mm	10/15mm	Urology
AF-D1807GL2	Ø1.8x700mm	≥Ø2.0mm	10/15/20mm	Choledochscopy
AF-D1810GL2	Ø1.8x1000mm	≥Ø2.0mm	10/15/20mm	Bronchoscopy
AF-D1816GL2	Ø1.8x1600mm	≥Ø2.0mm	10/15/20mm	Gastroscopy
AF-D1825GL2	Ø1.8x2500mm	≥Ø2.0mm	10/15/20mm	Enteroscopy
AF-D2415GL2	Ø2.4x1500mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-D2417GL2	Ø2.4x1700mm	≥Ø2.8mm	10/15/20/25/30/35mm	Gastroscopy
AF-D2421GL2	Ø2.4x2100mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy
AF-D2423GL2	Ø2.4x2300mm	≥Ø2.8mm	10/15/20/25/30/35mm	Colonoscopy

For retrieval of round and slippery objects.
